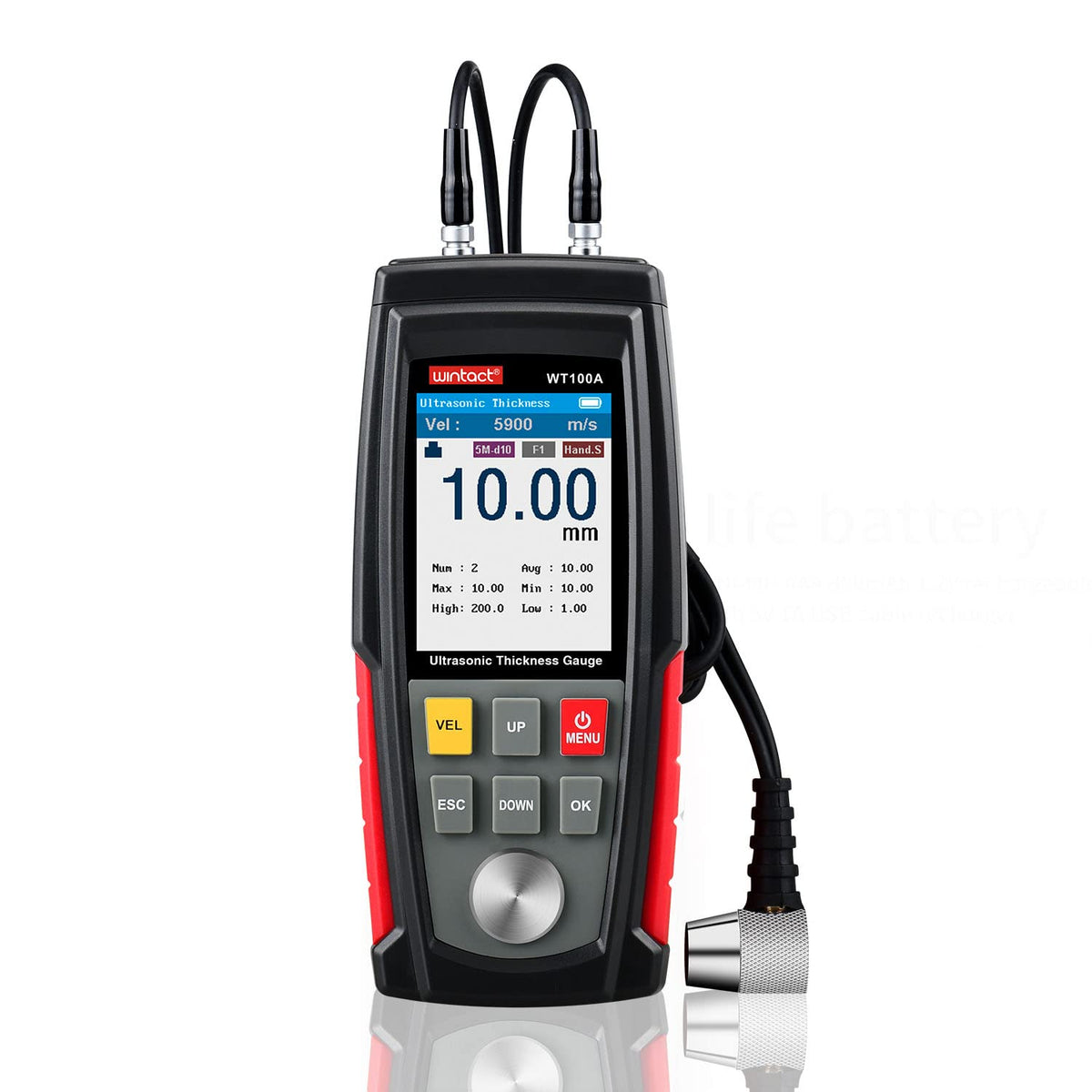

WINTACT WT130A Digital Ultrasonic Thickness Gauge, 1–300 mm

The WT130A is designed for fast thickness checks on suitable ultrasonic conductors, with a 2.4-inch color display, adjustable sound velocity, statistical views, and high-capacity data storage.

Key Specifications

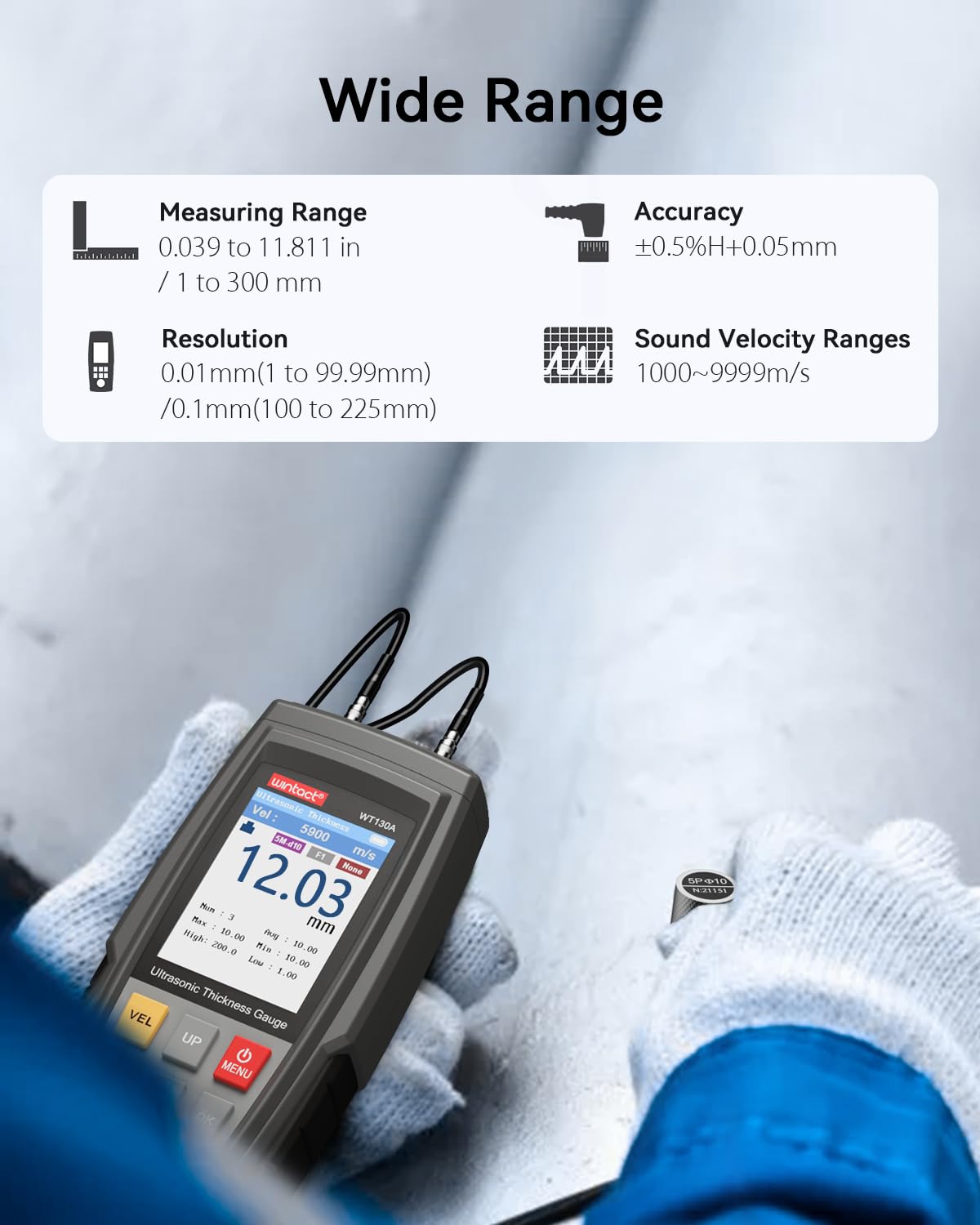

• Measurement range: 1–300 mm (0.039–11.81 in)
• Resolution: 0.01 mm
• Accuracy: ±(0.5%H + 0.05 mm)
• Response time: Approximately 0.5 second
• Sound velocity range: 1000–9999 m/s

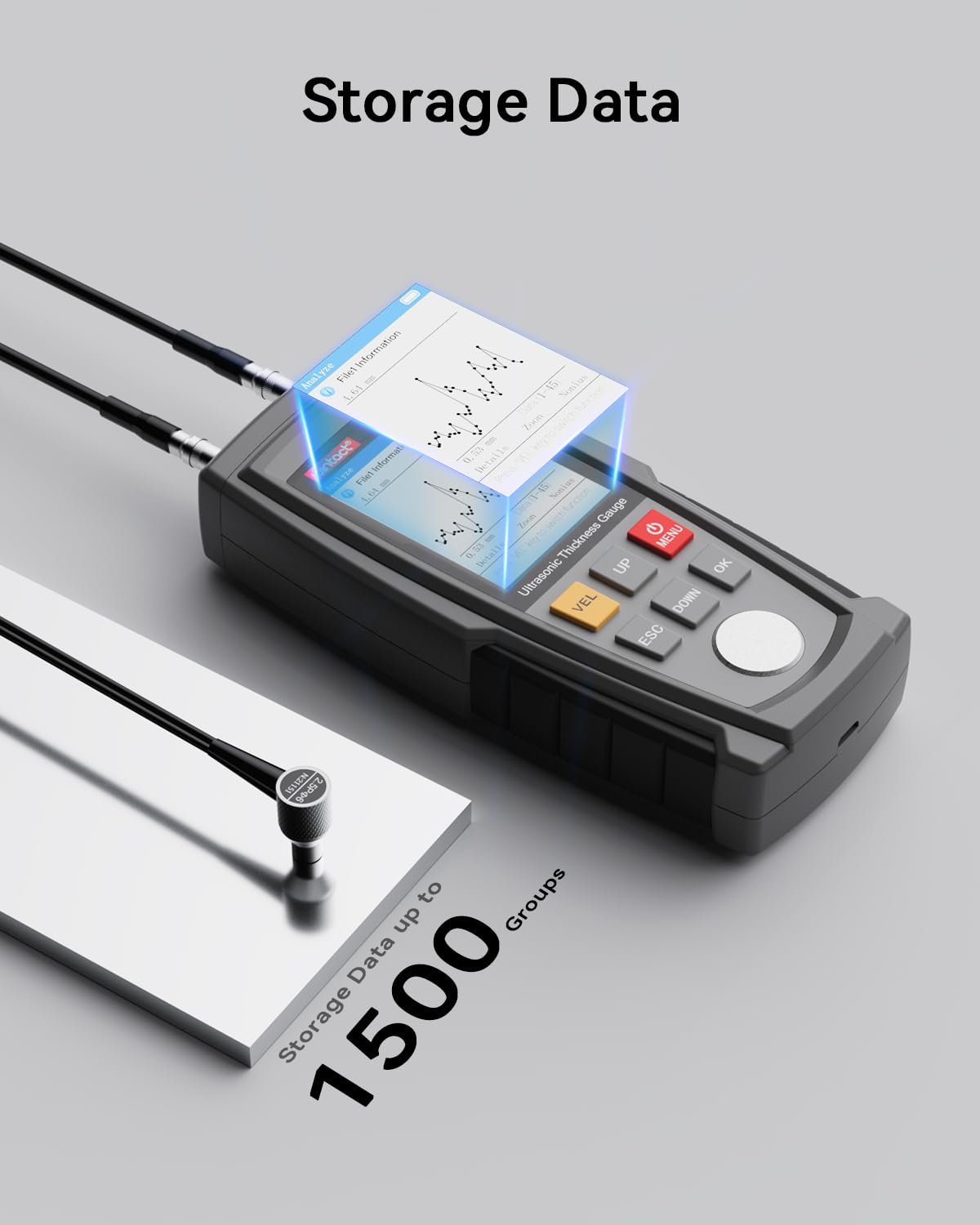

• Data storage: Up to 1500 readings

Key Features

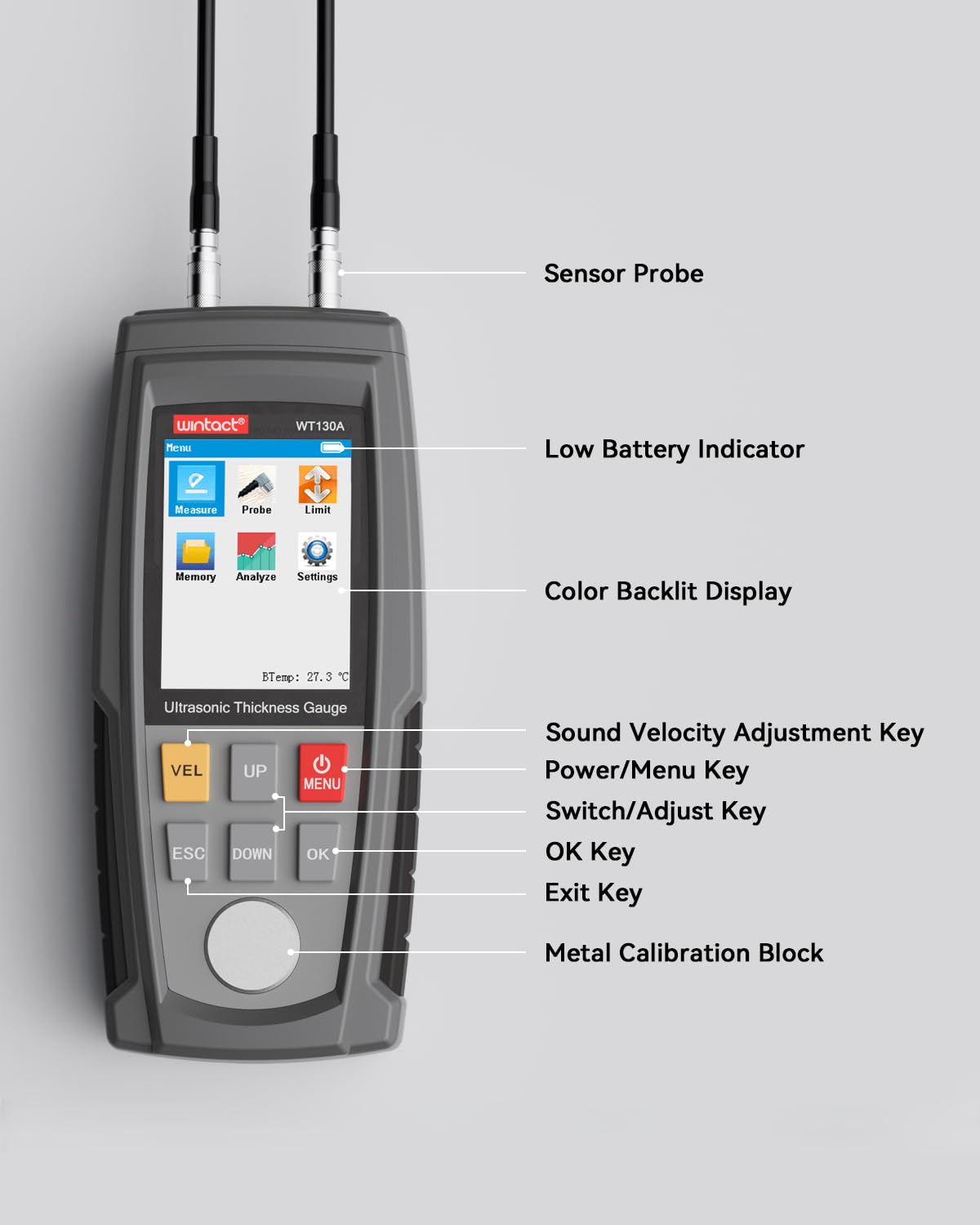

• 2.4-inch HD color display with backlight
• Five selectable color themes
• Average, minimum, maximum, and reading-count statistics

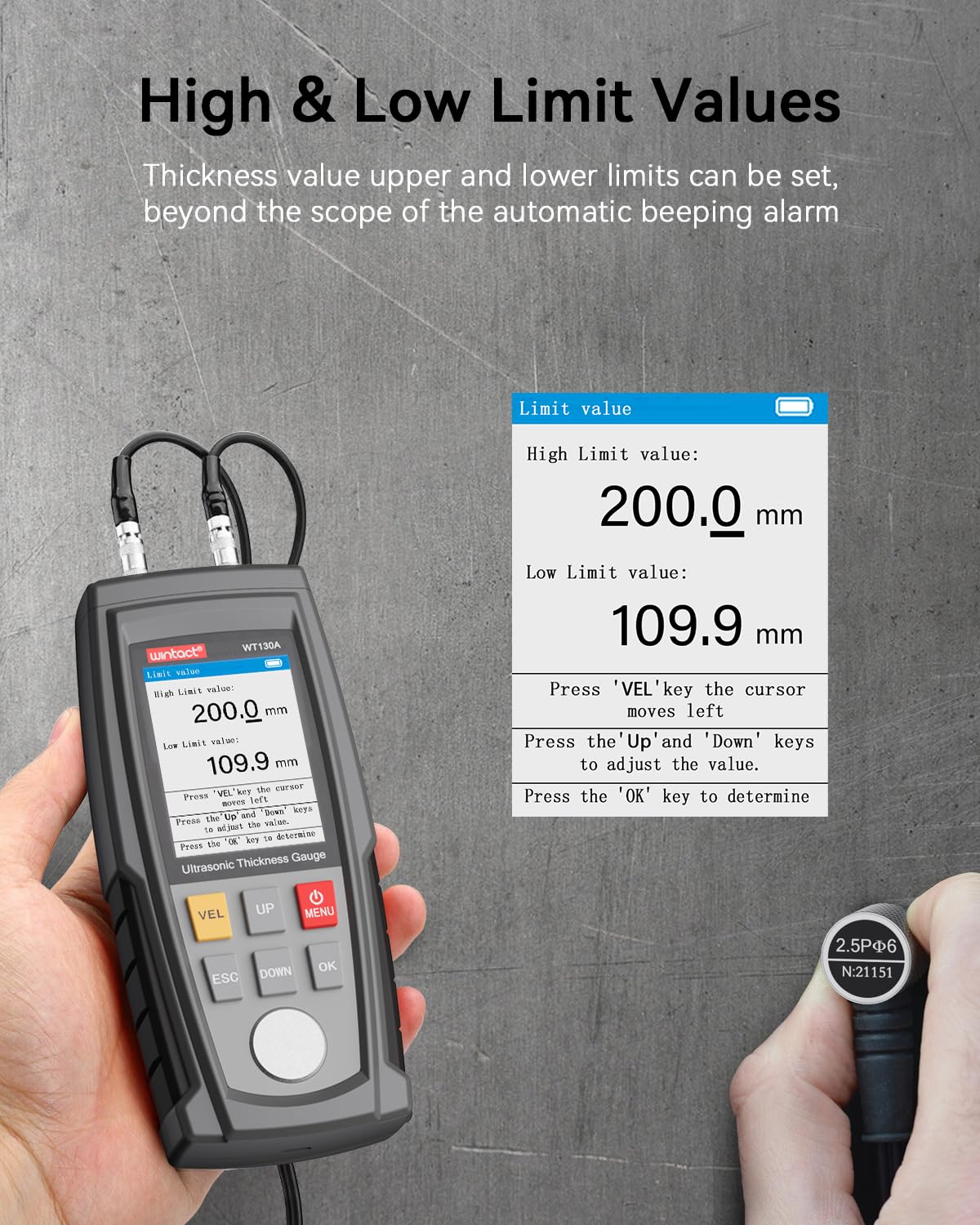

• Adjustable high and low thickness alarms
• Calibration, auto-off, and factory-reset functions

Ideal For

• Steel, aluminum, copper, brass, zinc, plastic, PVC, glass, ceramic, and pipe
• Industrial inspection and preventive maintenance
• Quality control where only one side is accessible

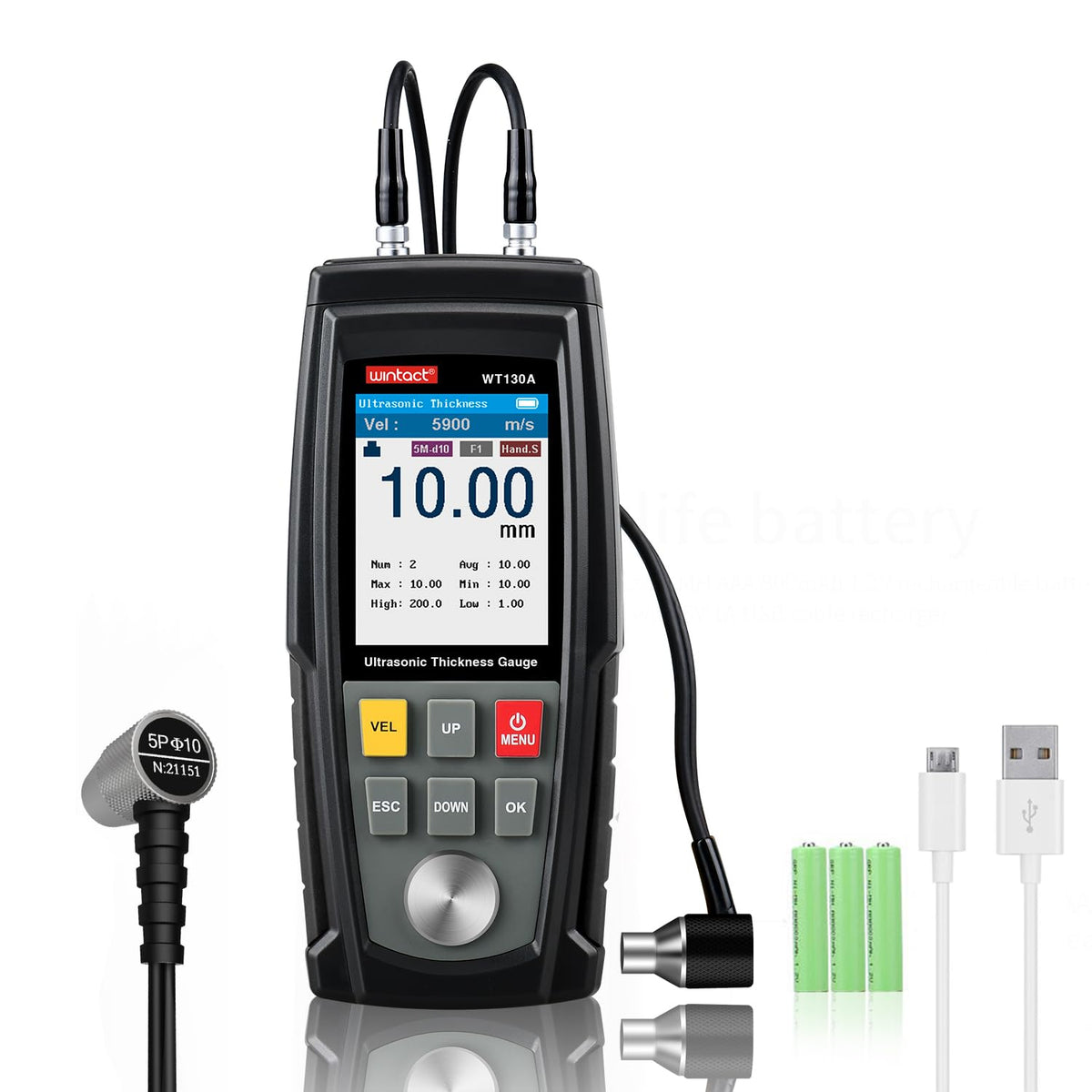

Package Contents

• WT130A ultrasonic thickness gauge

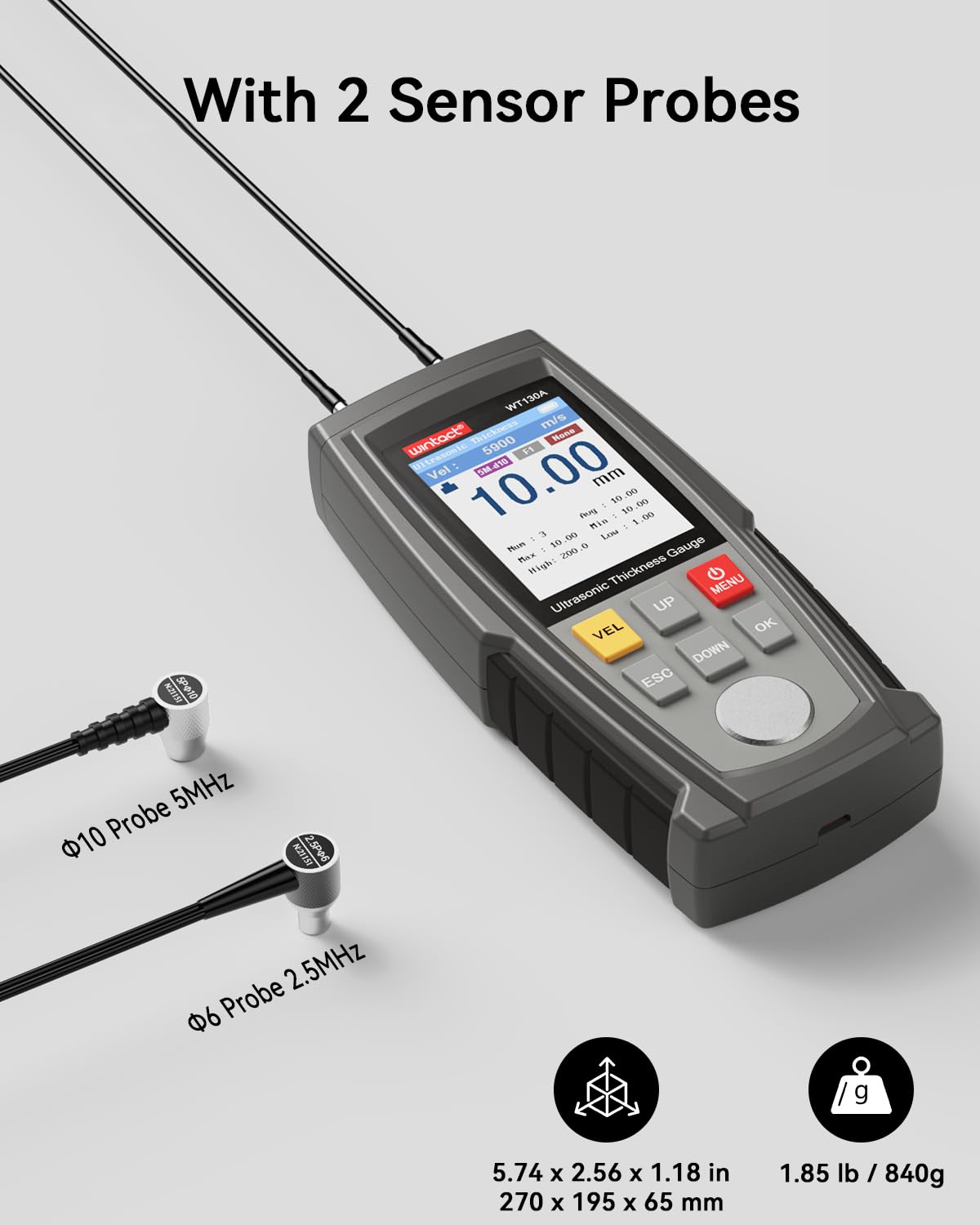

• Φ10 probe
• Φ6 probe
• Built-in metal calibration block
• USB cable

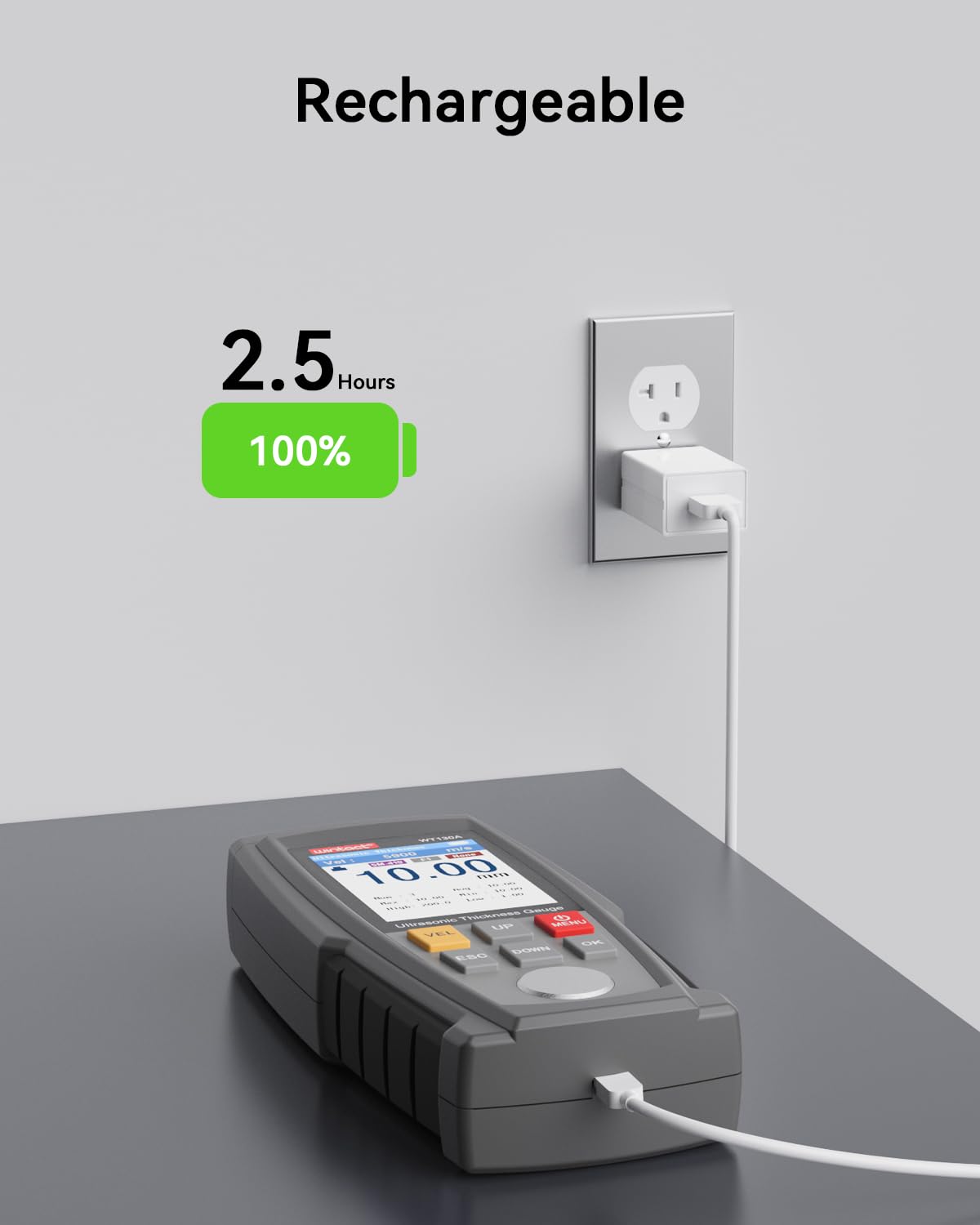

• 3 rechargeable batteries
• User manual

Important Notes

• Use only on materials that conduct ultrasound and have suitable parallel surfaces
• Not suitable for brick, concrete, or other porous materials
• Apply coupling agent before measurement
• Specifications follow the referenced Amazon listing
