WINTACT WT2110 Paint Coating Thickness Gauge, 0–1500 μm

The WT2110 provides fast coating measurements on ferrous and non-ferrous metal substrates, with a rotating color screen, statistics, alarms, and rechargeable batteries.

Key Specifications

• Measurement range: 0–1500 μm / 0–59 mil / 0–1.5 mm
• Resolution: 0.1 μm below 100 μm; 1 μm at or above 100 μm
• Measurement error: ±5 μm up to 150 μm; ±(3%H + 1 μm) above 150 μm
• Storage: Up to 1500 readings in 100 groups

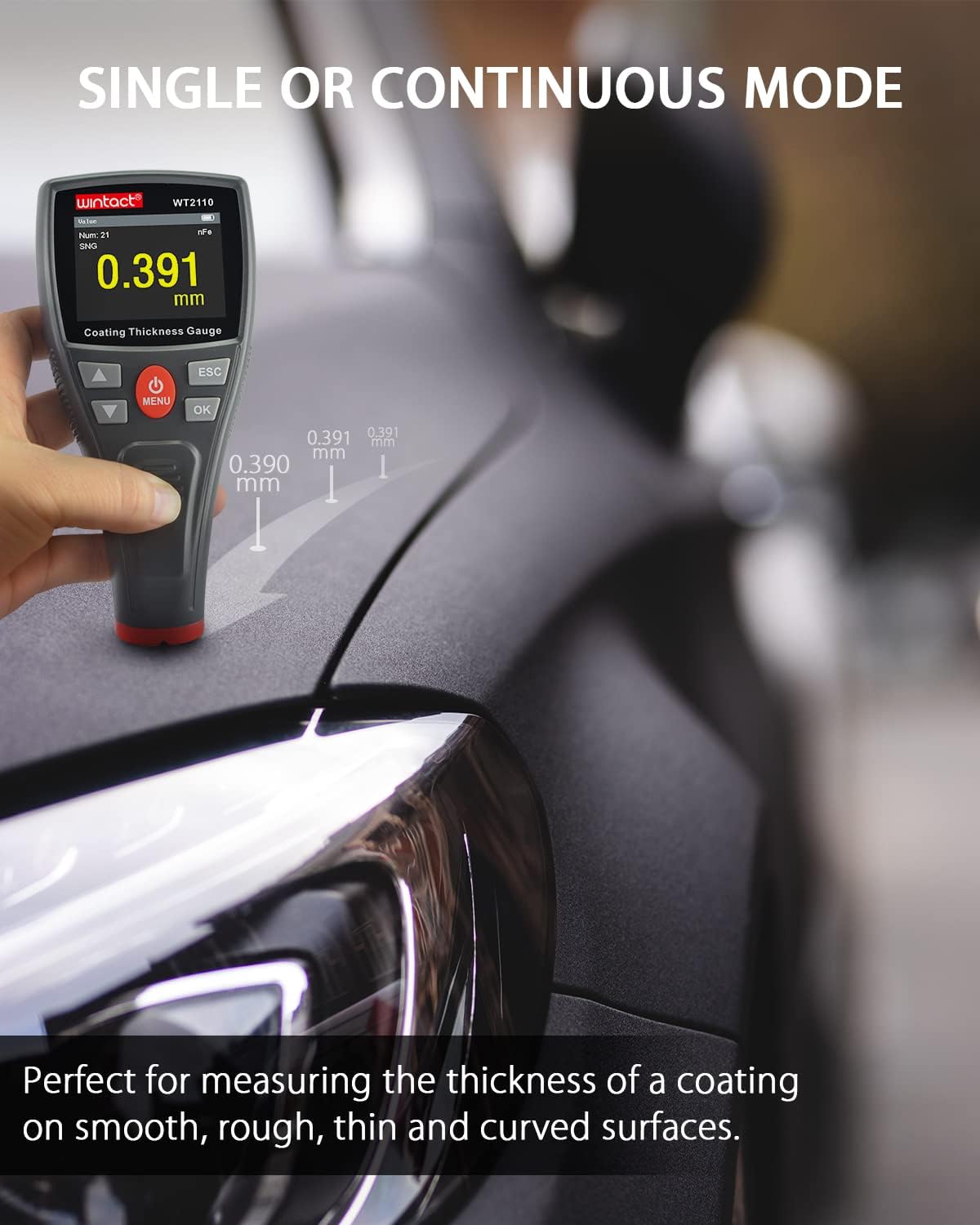

• Measurement modes: Single and continuous

Key Features

• Magnetic induction and eddy-current measurement

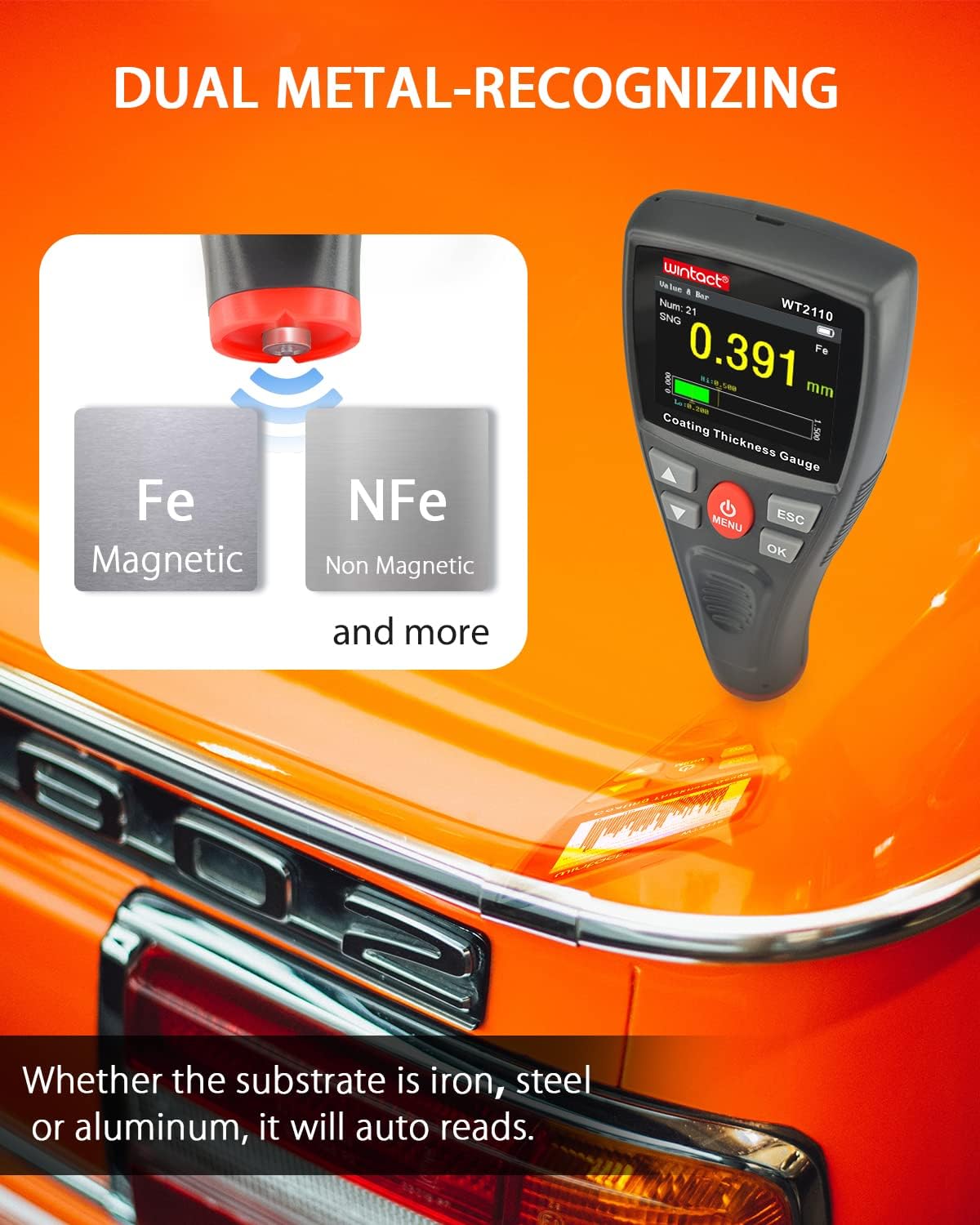

• Automatic ferrous and non-ferrous substrate detection
• High and low limit alarms

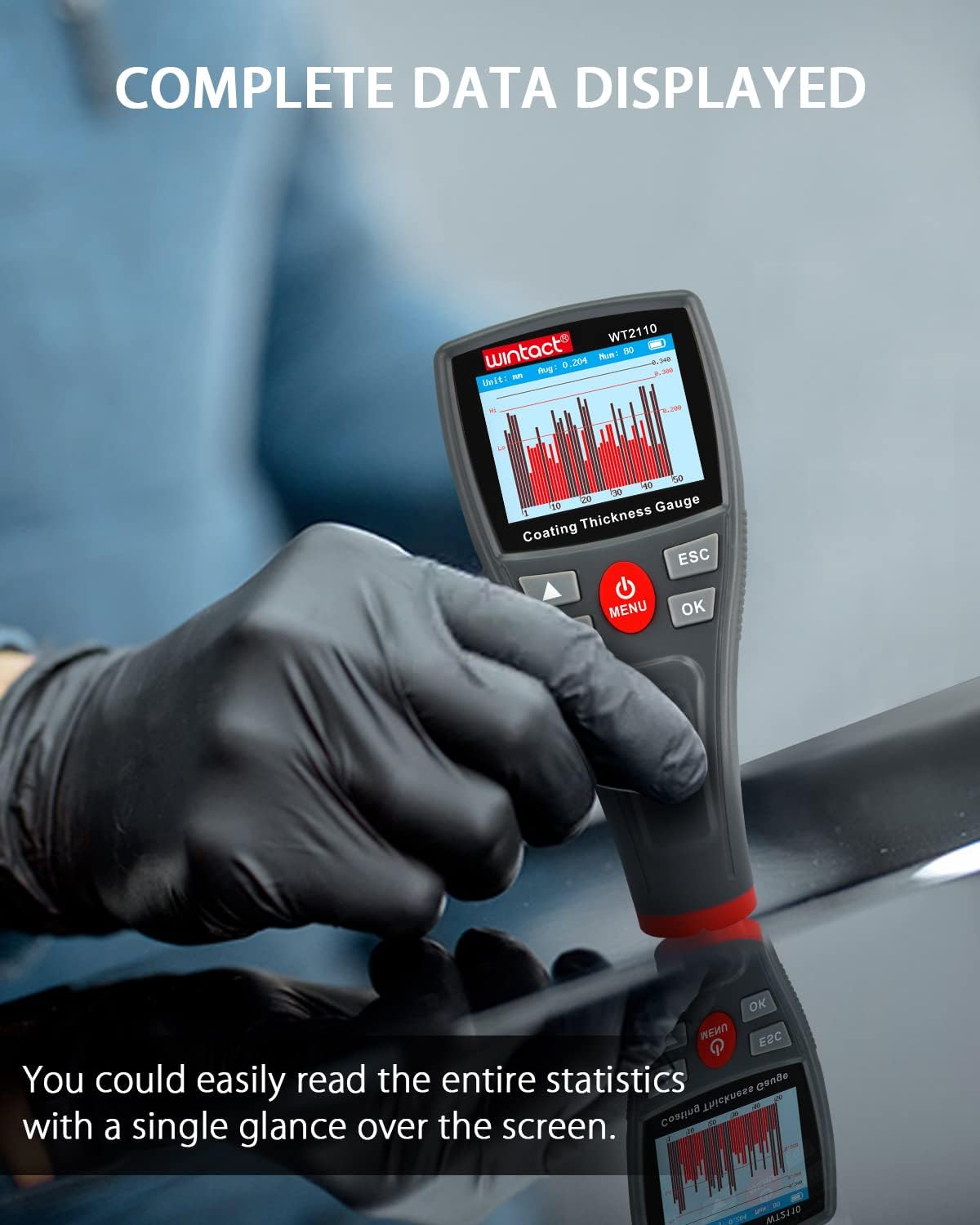

• Statistics and bar-graph display

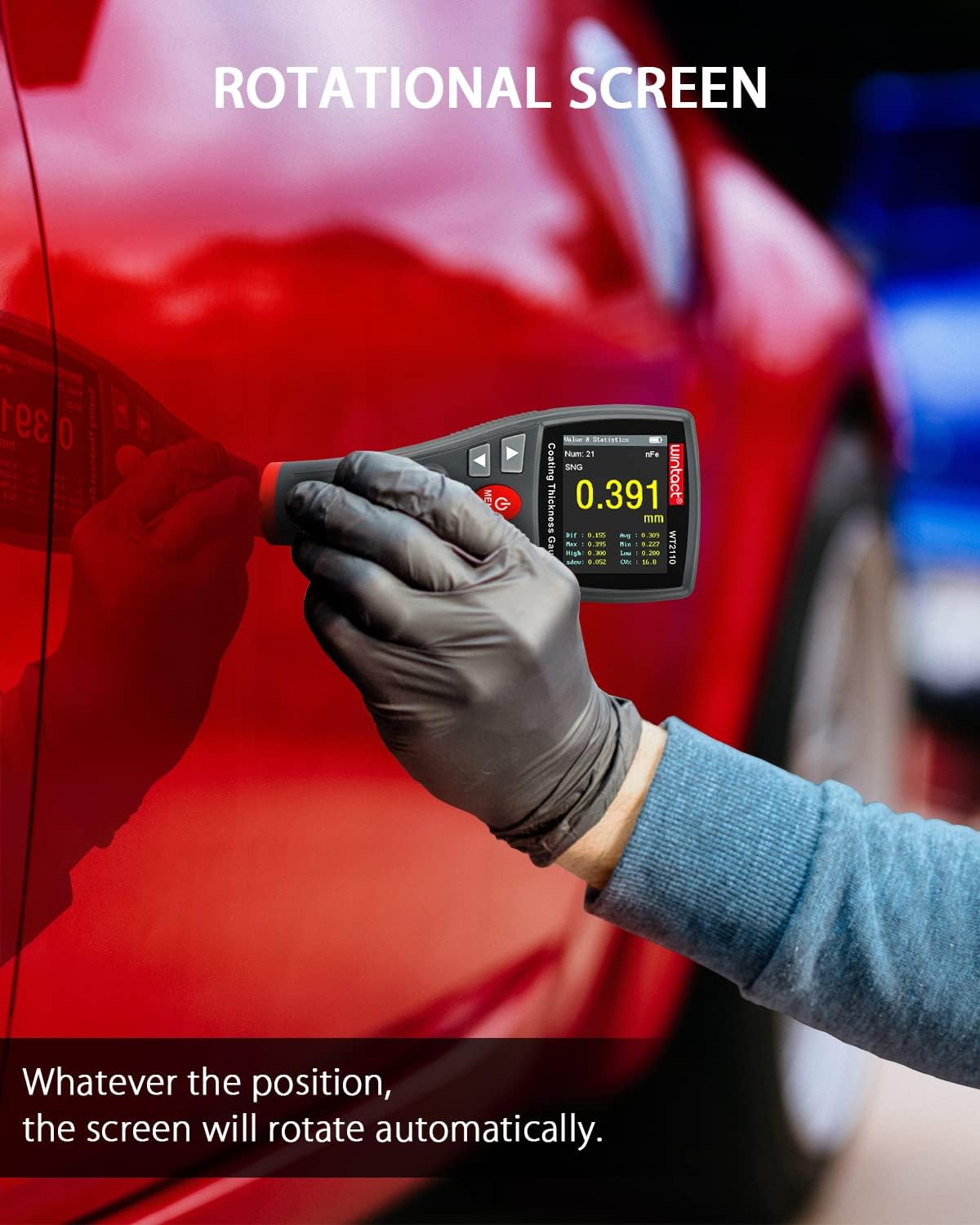

• 360° auto-rotating backlit color screen
• Selectable auto-off timer

Ideal For

• Used-car paint inspection
• Automotive body and refinishing work
• Industrial coating checks on compatible metal

Package Contents

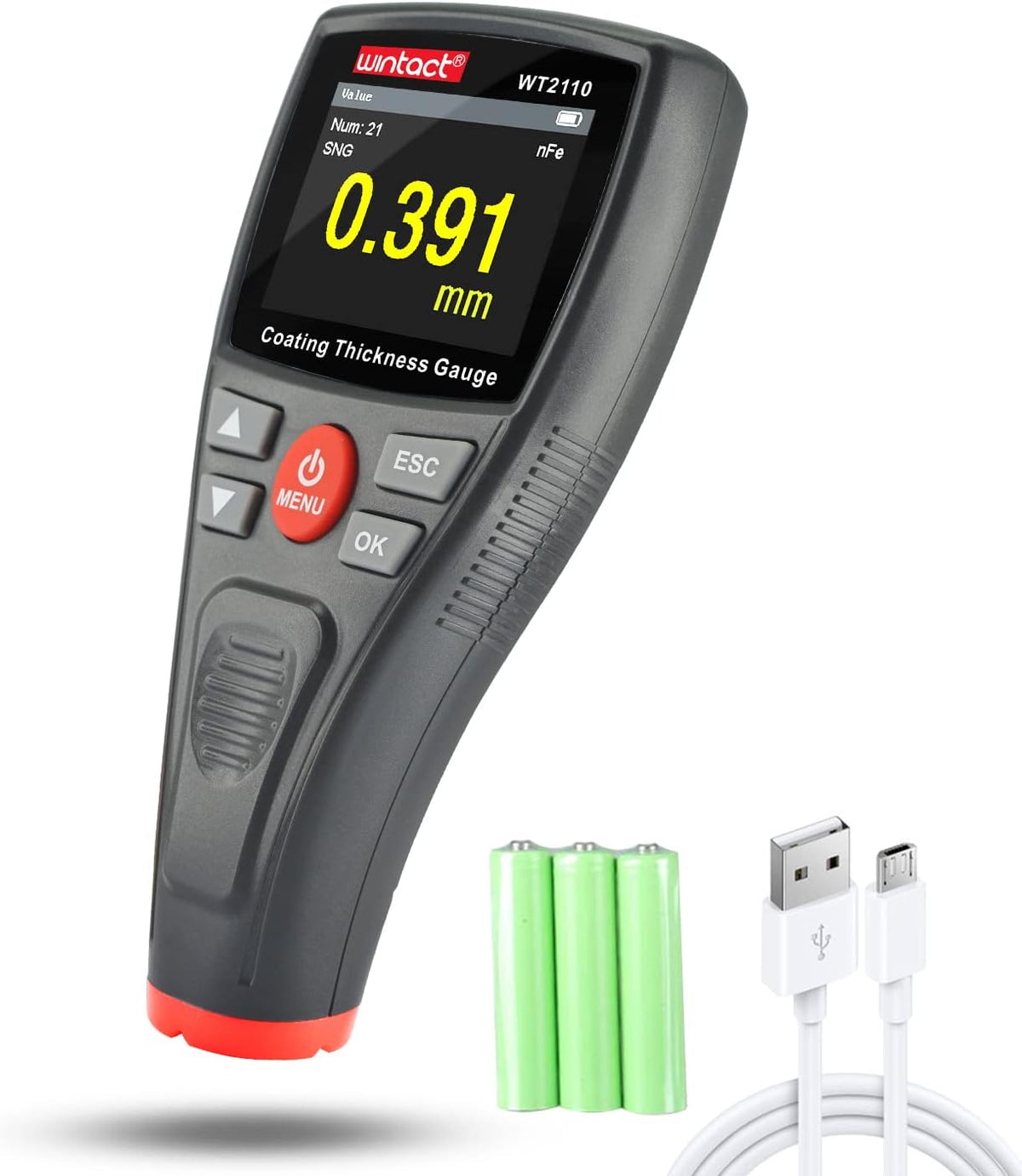

• WT2110 coating thickness gauge
• Calibration metal set
• USB cable

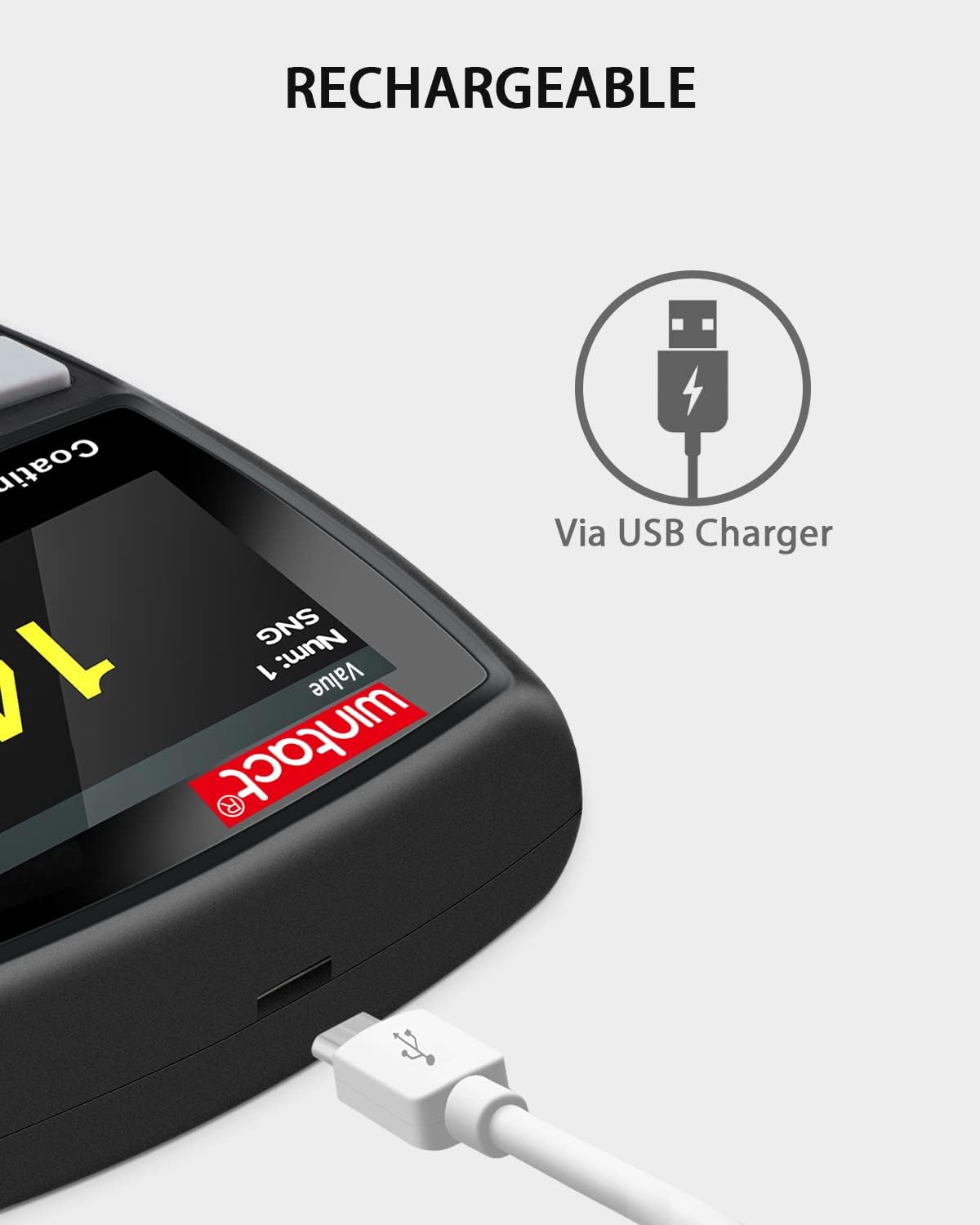

• 3 rechargeable Ni-MH batteries
• User manual

Important Notes

• Charge only rechargeable batteries in the device
• Keep the probe perpendicular and the test surface clean
• Calibrate for the substrate and measurement task
• Not intended for coating on non-metal substrates
