WINTACT WT230 Paint Coating Thickness Gauge, 0–1300 μm

The WT230 helps used-car buyers, detailers, and inspectors check paint and coating thickness on magnetic and non-magnetic metal substrates, with fast readings and onboard statistics.

Key Specifications

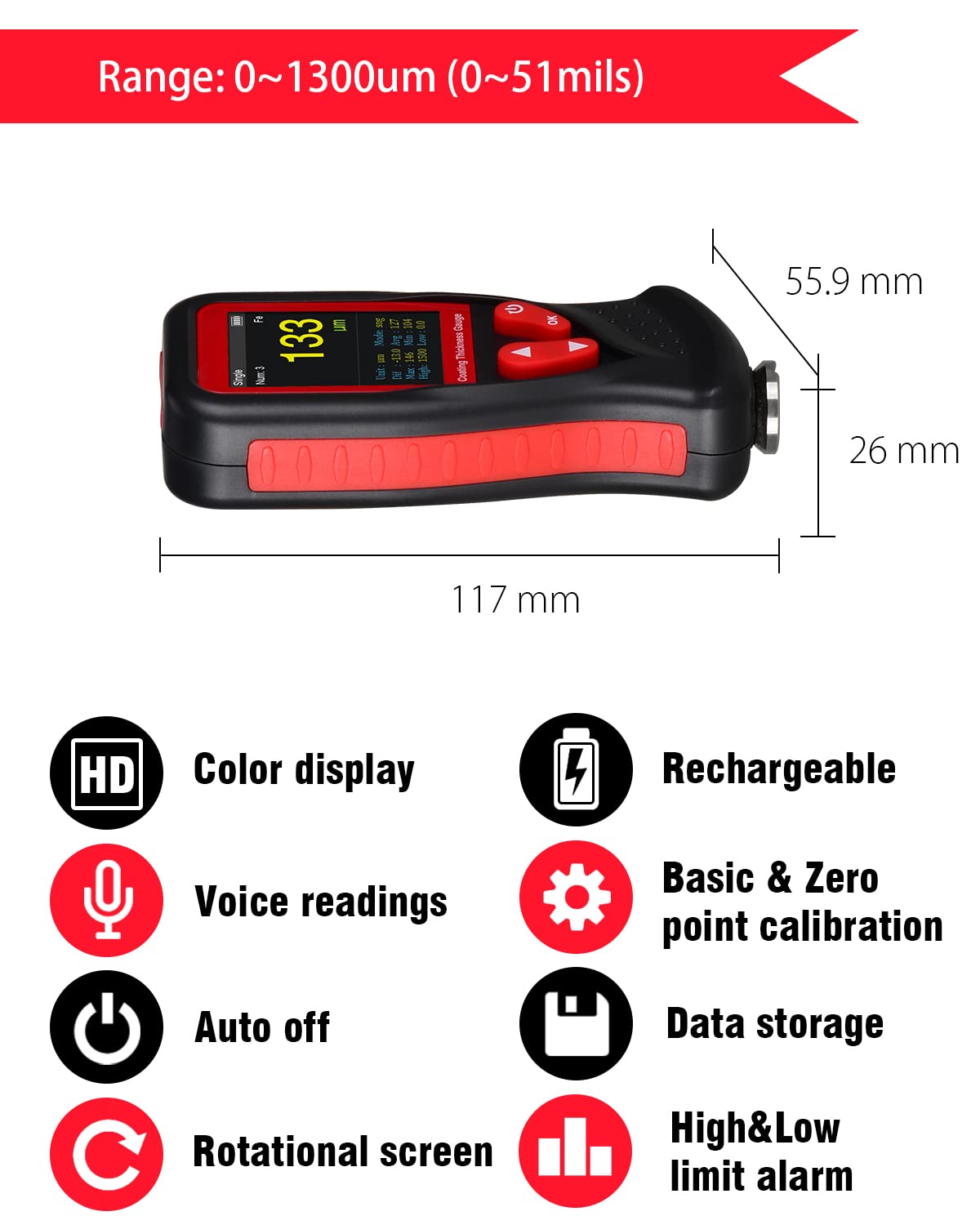

• Measurement range: 0–1300 μm (0–51 mil)
• Accuracy: ±(3%H + 1 μm)
• Resolution: 0.1 mil
• Storage: Up to 1500 readings in 100 groups

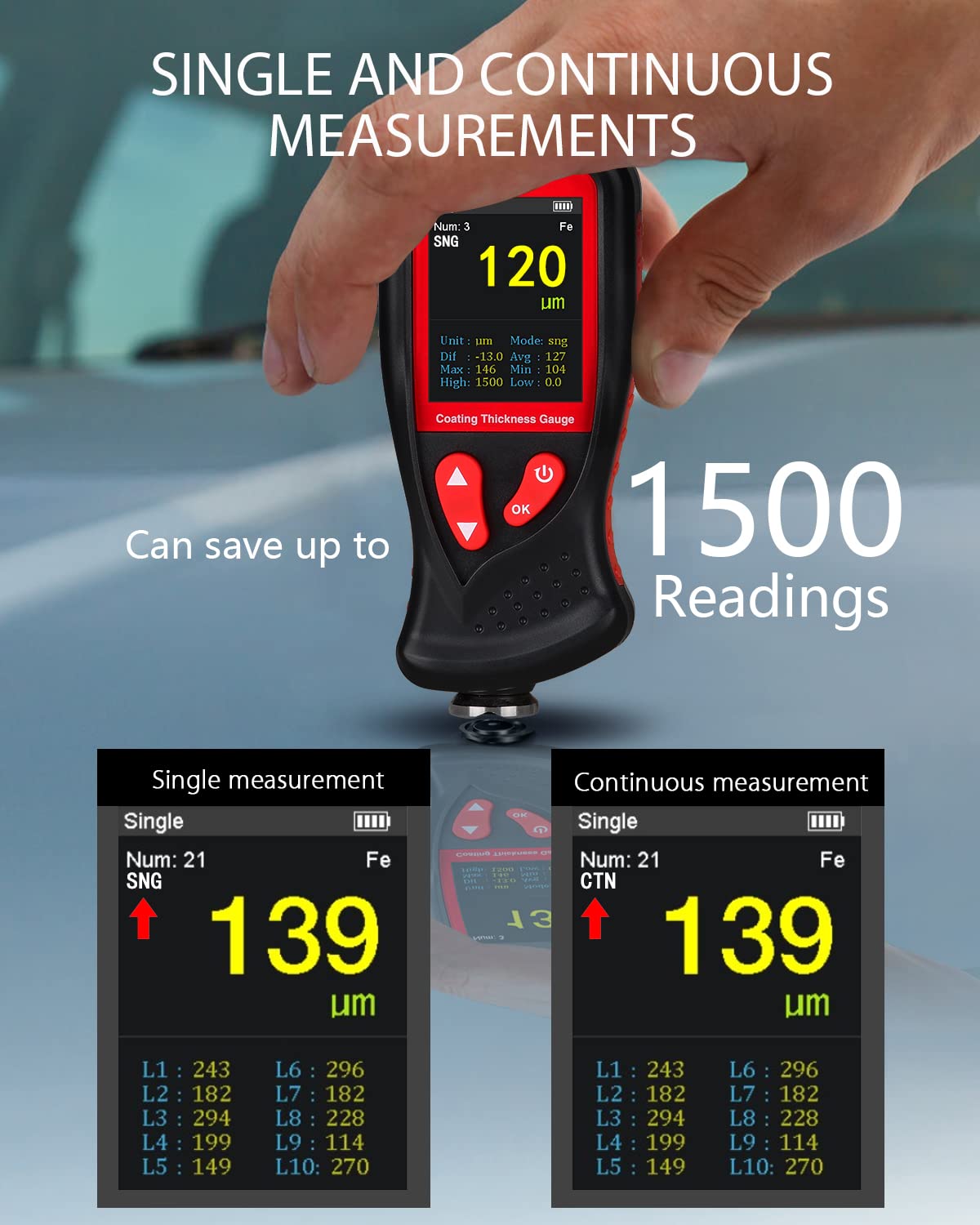

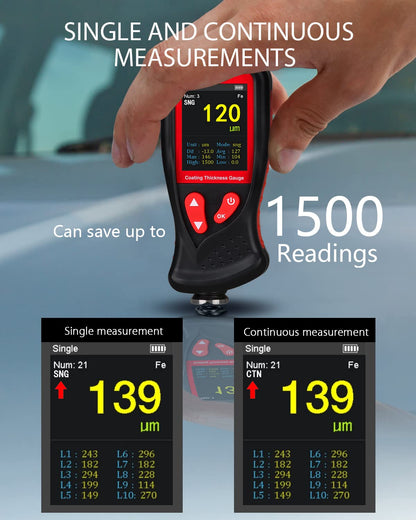

• Measurement modes: Single and continuous

Key Features

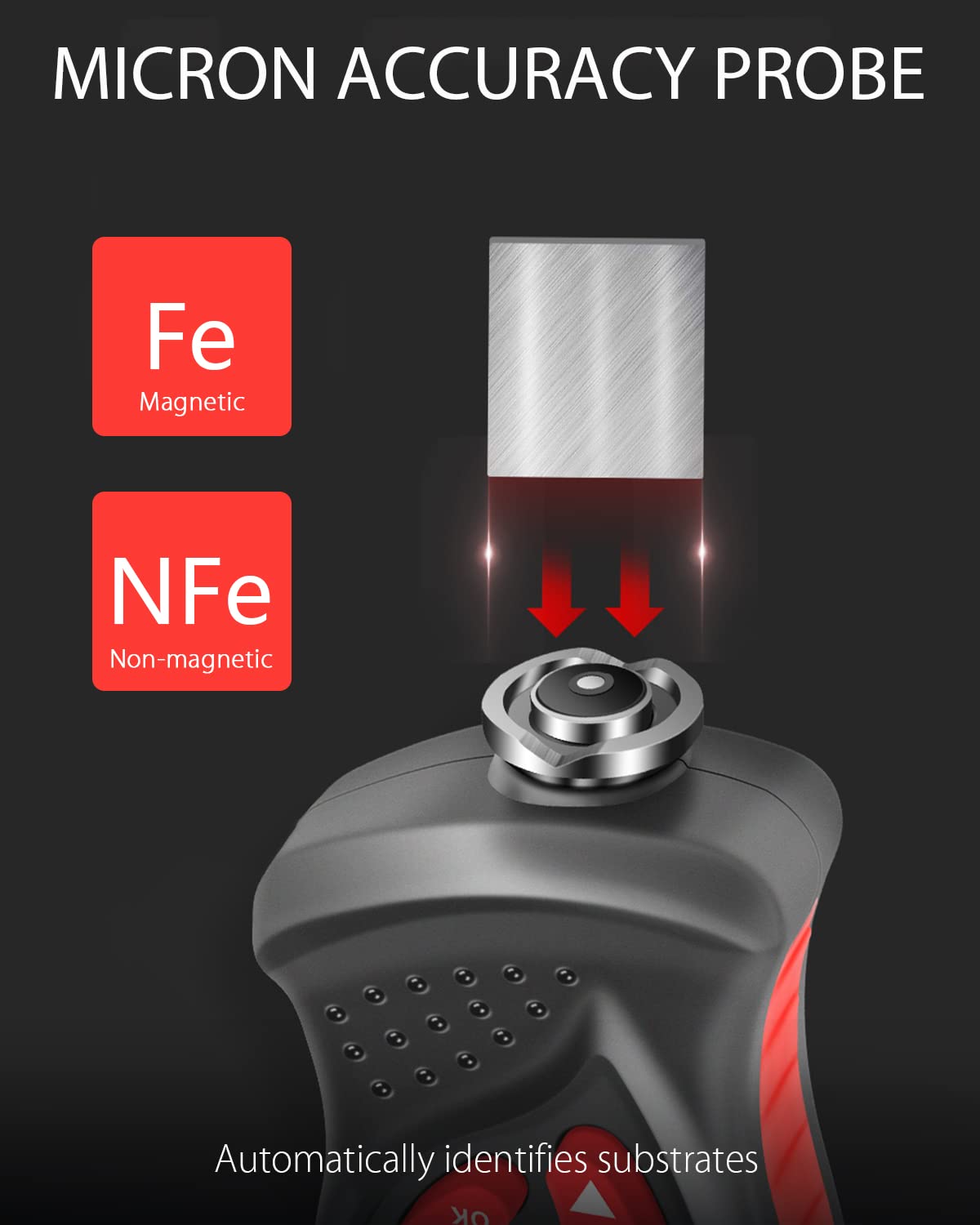

• Automatic magnetic and non-magnetic substrate identification
• Basic and zero calibration
• Maximum, minimum, mean, standard deviation, and reading-count display
• High and low limit alarms

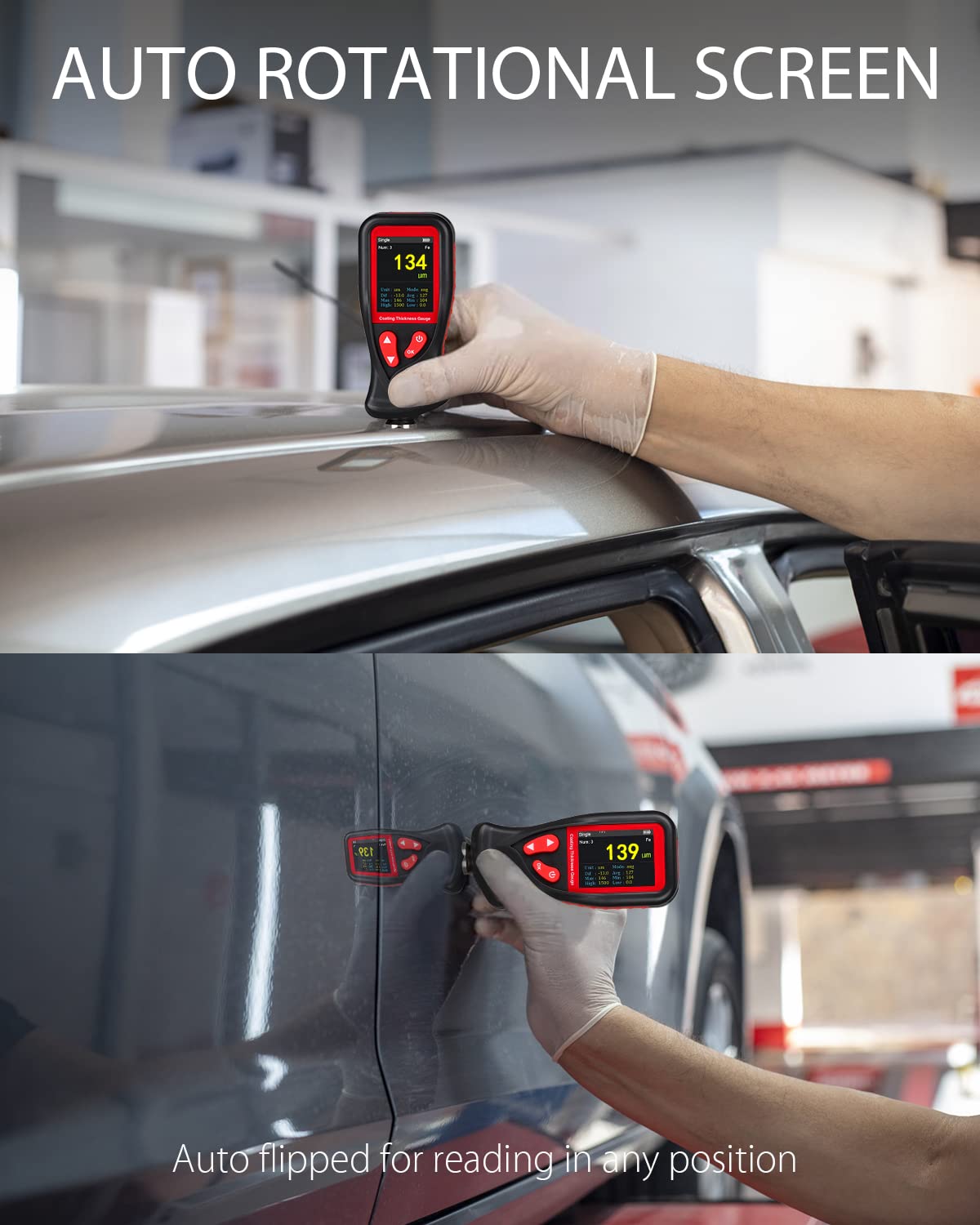

• Auto-rotating backlit color display
• Built-in 1000 mAh rechargeable battery

Ideal For

• Used-car paint inspection
• Automotive refinishing and detailing
• Coating quality control on ferrous and non-ferrous metal

Package Contents

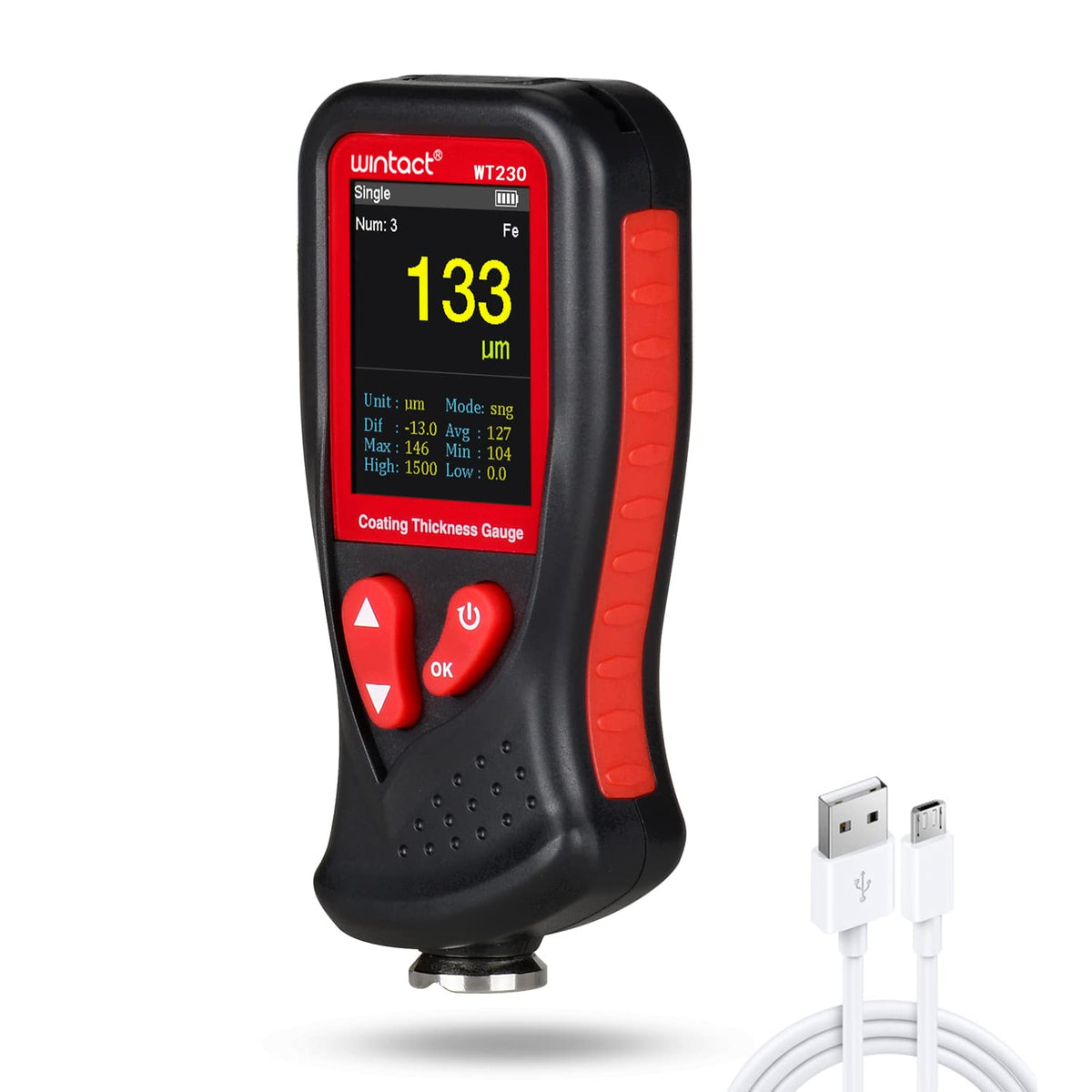

• WT230 coating thickness gauge
• Aluminum and iron calibration plates
• 5 calibration foils
• USB cable
• User manual

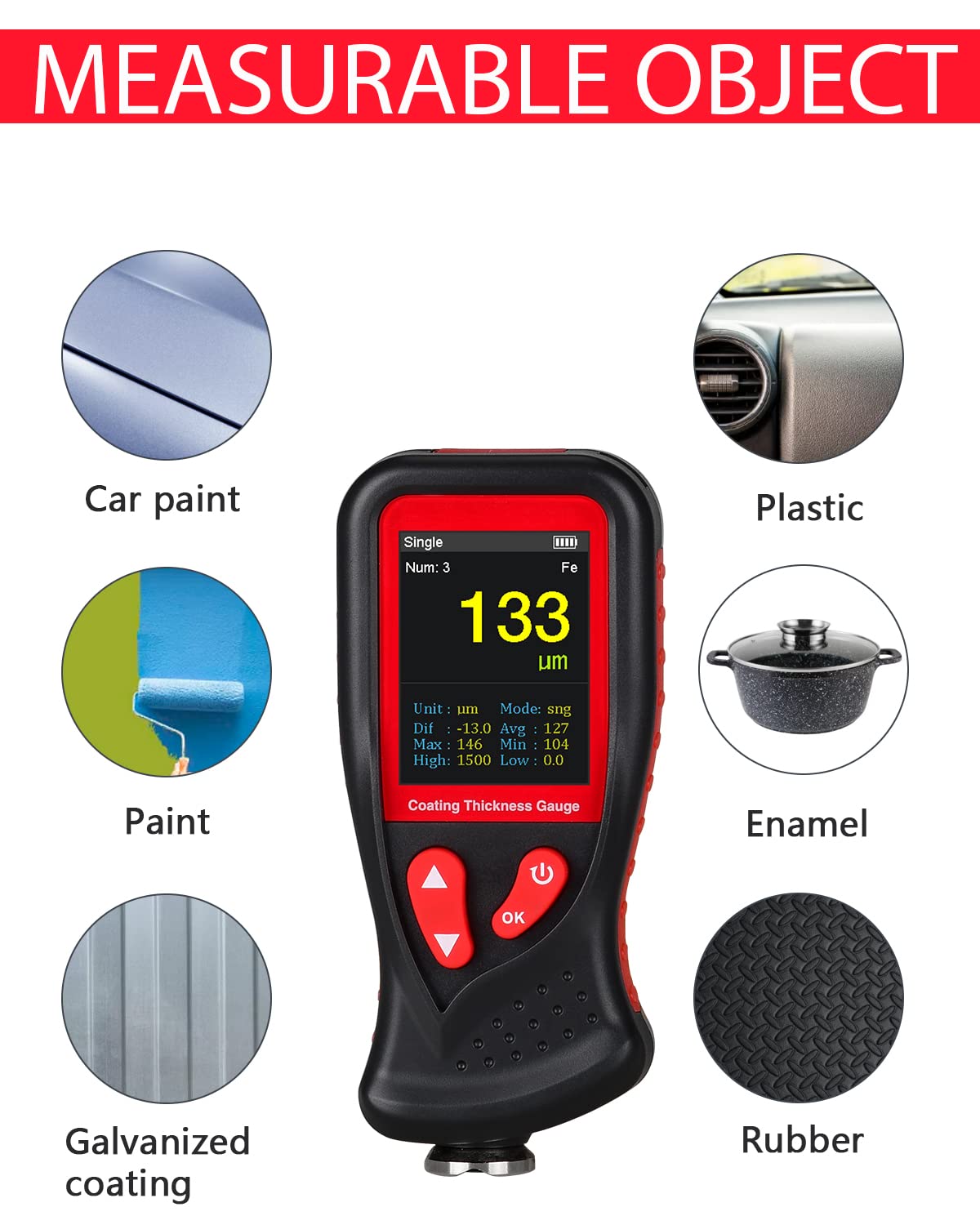

Important Notes

• Designed for coatings on suitable metal substrates
• Keep the probe perpendicular and the surface clean
• Calibrate according to the material and measurement task
• Not intended for coating on wood, plastic, or other non-metal bases
